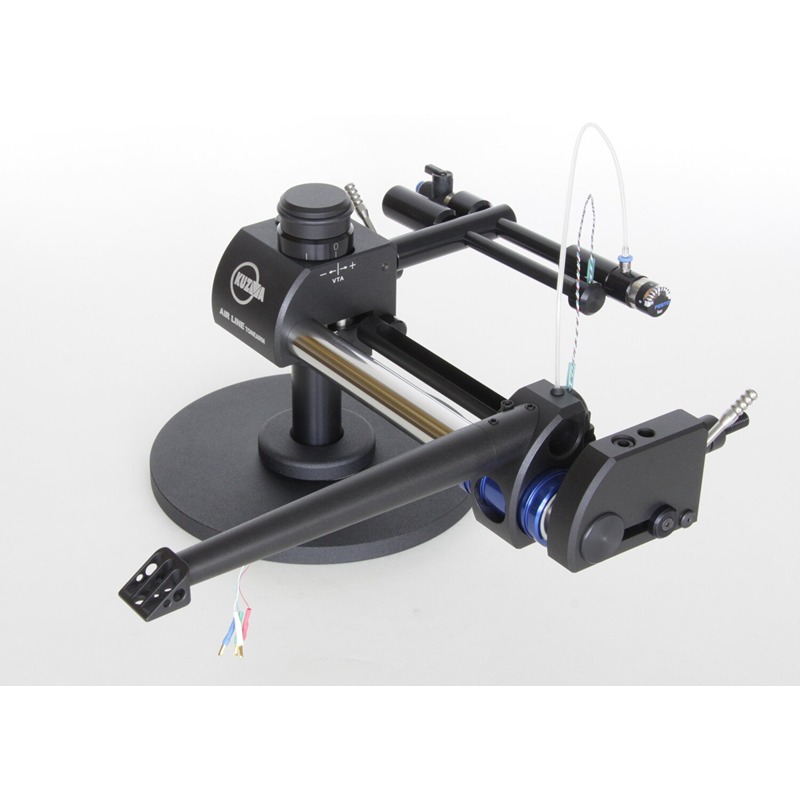

Is A Linear Tangential Arm Incorporating Air Bearing Which Ensures Practically Zero Friction In Movements, While Still Maintaining A Rigid Bearing. The Cartridge Is Thus Maintained In A Position The Same As The Cutting Head.
The Air Line Tonearm Is The Result Of A Combination Of Experience Making Top Class Conventional Radial Tonearms And New Research Into Air Bearing Technology.
The Air Line Tonearm Also Has A Rigid, Minimally Resonating Aluminium Structure And Is Easy To Adjust, With Repeatable Precise VTA And Azimuth Adjustments As Used In Our Best Tonearms.
| Technical Data | |
| Effective Length | 184 Mm |
| Arm Mount Distance | 212 Mm |
| Distance From Spindle To Horizontal Bearing | – |
| Bearing Type | Precise High Pressure Air Bearing |
| Effective Mass | Vert. |
| Total Mass | 2270 Gr |
| Offset Angle | 0* |
| VTA Adjustment | Precise VTA Tower |
| Azimuth Adjustment | Precise Worm Drive |
| Tube | Conical |
| Bias | – |
| Max. Standard Cartridge Weight | 25 Gr |
| Optional Light And Heavy Counterweight | Yes |
| Damping | Yes |
| Detachable Headshell | No |
| Arm Mount | Kuzma |
| Standard Wiring | Silver, RCA Bullets ( 46pF ) |
| Accessories | Protractors,Allen Keys, Cartridge Mounting Screws |
| Options | XLR, 5pin, RCA Box |
