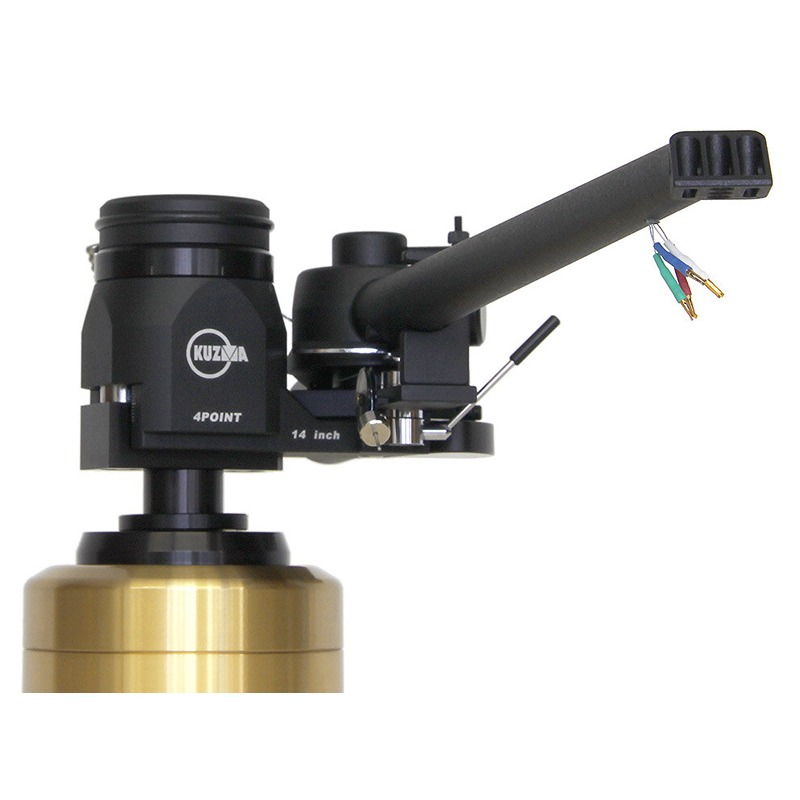

4Point 14 Is 4Point Tonearm With 14 Inch ( 353 Mm) Effective Length Which Is Fitted On 12 Inch ( 291mm) Distance Position On The Turntable. See Manual For Details. It Is Possible 4Point 14 Inch This Tonearm On Stabi M And Still Close The Lid When Not Playing Records.
The 4Point 14 Inch Tonearm Just Fits The Stabi M Turntable With The Use Of A 12 Inch Cutout But Some Parts Of The Tonearm Come Very Close To The Edge Of The Lid. Please Follow These Instructions When Mounting The 4Point 14 Inch Tonearm And Cartridge.
| Technical Data | |
| Mass | 2150 Gr |
| Effective Length | 353 Mm ( 14 Inch ) |
| Mounting Distance | 291,50 Mm( Kuzma Cut- 291 Mm ) |
| Offset Angle | 15,35 Degrees |
| Distance Spindle-Horizontal Bearing | 340 Mm ( 338 Mm For Stabi M) |
| Bearing Type | 4 Points (Sapphire & Ruby Cups / Steel Pivots-See Modification) |
| Effective Mass | 19 G |
| VTA Adjustment | Yes |
| Azimuth Adjustment | Yes |
| Bias Adjustment | Yes |
| Vertical Damping | Yes |
| Horizontal Damping | Yes |
| Detachable Headshell | Yes ( One Extra Supplied) |
| Cables | Silver |
| Arm Mount | Kuzma Cut ( 12 Inch Position) |
| Optional | Extra Headshells, Headshell Containers, Different Wiring Option |
