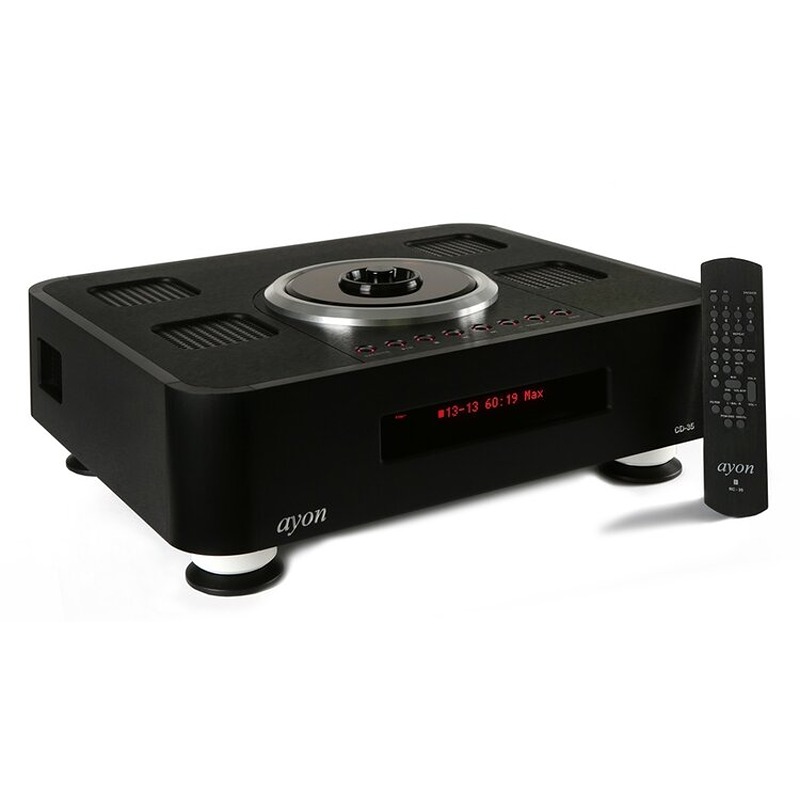

CD-35 HF

Best Product 2017
Whipped Up By The Great Success Of The CD-35 We Got More And More Requests To Launch A Special And Limited Version Of The CD-35, Quasi A “Digital” Machine That Should As “Analogue” As Never Before. All Music Lovers Engaged In Top Analogue Turntables And/Or Reel-To-Reel Tape Recorders Also May Feel To Be Approached. Many Ideas, Thoughts, Suggestions, And A Dedicated Assistance Of The People Of The HighFidelity.Pl Magazine Also Were Incorporated In The CD-35 HF Project. Based Upon The Existing CD-35 Technology Every Detail Was Re-Examined Carefully, Refined, High-Selected, Re-Adjusted, And The Best-Sounding Components Were Implemented At The Decisive Points Of The Circuitry. Also, Its Slightly Modified Appearance, Equipped With Additional Black Elements, Underline The Exclusivity.
The CD-35 HF Reflects A Deep Magical Illumination Of Space, Paired With A Dynamic Black Deployment Of Power Second To None. With Its Enormous Musical Representation And Its Tranquility In Detail Also The “Long-Term Listening” Is Always Experienced As Being Relaxed And Inspiring.
Herewith, A New Era Of Digital/Analogue CD-Reproduction Presents Itself In The Foreground, A Masterpiece Of The Art Of Sound.
Some add Highlights
V-Cap TFTF Coupling Capacitors;
Franc Audio – Ceramic Feet;
WBT-210 NextGen RCA Jacks;
Tantalum 2-Watt Resistors For Tube Output-Stage;
AKM 4497EQ For DAC Section;
Black Finish For Cooling Slots, Top Plate Buttons, CD-LID And CD-Inside Housing;
All Important Components Are Matched At 1% Level;
Limited At 50 Pieces In Total And Max. 2 Pcs. Per Month Are Built Only;
Technical data
| SACD/CD-Player | Ayon CD-35 HF |
| Conversion Rate | 768kHz / 32 Bit & DSD 256 |
| DAC Confirguration | Fully Symmetrical / 2 X 4497EQ AKM-Japan |
| DSP Module (Option) | PCM→DSD & DSD→DSD |
| Tube Complement | 6H30 & 5687 |
| Dynamic Range | > 120dB |
| Output Level @1 KHz / 0,775V -0dB Low | 2.5V Fixed Or 0 – 2.5 V Rms Variable |
| Output Level @1 KHz / 0,775V -0dB High | 5V Fixed Or 0 – 5V Rms Variable |
| Output Impedance Single-Ended-RCA | ~ 300 Ω |
| Output Impedance Balanced-XLR | ~ 300 Ω |
| Digital Output | 75 Ω S/PDIF (RCA) |
| Digital Input | 75 Ω S/PDIF (RCA), USB, I2S, BNC, AES/EBU,3 X BNC For DSD |
| S/N Ratio | > 119 DB |
| Frequency Response | 20Hz – 50kHz +/- 0.3dB |
| Total Harmonic Distortion @ 1kHz | < 0.001% |
| Remote Control | Yes |
| Output Complement | RCA & XLR |
| Dimension (WxDxH) Cm | 48x39x12 Cm |
| Weight | 17 Kg |
